Quick Overview

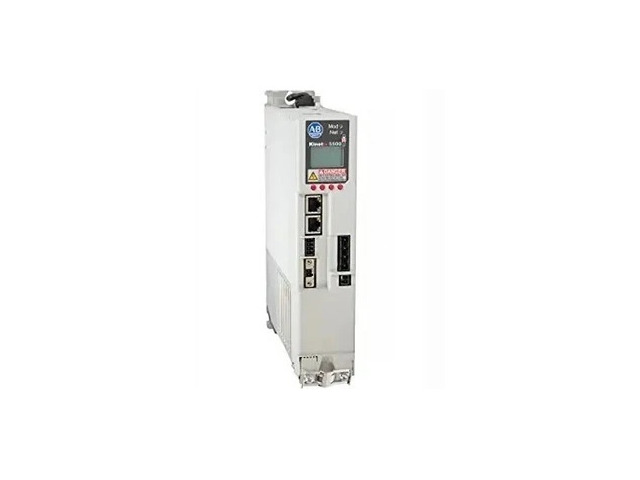

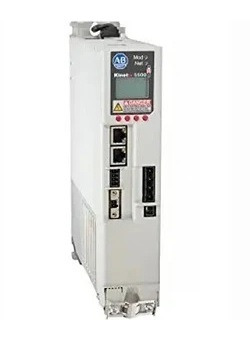

Kinetix 5700 Single Axis Inverter Integrated Safety
Cat. No.: 2198-S312-ERS3
AC Input Voltage: 170...528V RMS, Three Phase (240V/480V Nom)
Bandwidth: Velocity Loop: 400 Hz
Current Loop: 1000 Hz
Continuous Output Current Amps: 271.5A
Peak Output Current: 441.2A
Continuous Output Power @240 Input : 56.0 kW
@480 Input: 112 kW
Width: 220MM
ISA is not an authorized distributor or affiliate for the Manufacturer of this product. The product will be materially different than one acquired through an authorized distributor. Therefore the warranty will be honored through ISA 3 Year Warranty! Warranty valid through Industrial Solutions Authority This product has upgraded power structure components to ensure the product can remain in service well past its 3 year warranty period."
Cat. No.: 2198-S312-ERS3
AC Input Voltage: 170...528V RMS, Three Phase (240V/480V Nom)
Bandwidth: Velocity Loop: 400 Hz
Current Loop: 1000 Hz
Continuous Output Current Amps: 271.5A
Peak Output Current: 441.2A
Continuous Output Power @240 Input : 56.0 kW
@480 Input: 112 kW
Width: 220MM
ISA is not an authorized distributor or affiliate for the Manufacturer of this product. The product will be materially different than one acquired through an authorized distributor. Therefore the warranty will be honored through ISA 3 Year Warranty! Warranty valid through Industrial Solutions Authority This product has upgraded power structure components to ensure the product can remain in service well past its 3 year warranty period."
- In Stock: 1
- Condition: New Other
- SKU: SD63904
Kinetix 5700 Single Axis Inverter Integrated Safety
Cat. No.: 2198-S312-ERS3
AC Input Voltage: 170...528V RMS, Three Phase (240V/480V Nom)
Bandwidth: Velocity Loop: 400 Hz
Current Loop: 1000 Hz
Continuous Output Current Amps: 271.5A
Peak Output Current: 441.2A
Continuous Output Power @240 Input : 56.0 kW
@480 Input: 112 kW
Width: 220MM
ISA is not an authorized distributor or affiliate for the Manufacturer of this product. The product will be materially different than one acquired through an authorized distributor. Therefore the warranty will be honored through ISA 3 Year Warranty! Warranty valid through Industrial Solutions Authority This product has upgraded power structure components to ensure the product can remain in service well past its 3 year warranty period."
{##}
Cat. No.: 2198-S312-ERS3
AC Input Voltage: 170...528V RMS, Three Phase (240V/480V Nom)
Bandwidth: Velocity Loop: 400 Hz
Current Loop: 1000 Hz
Continuous Output Current Amps: 271.5A
Peak Output Current: 441.2A
Continuous Output Power @240 Input : 56.0 kW
@480 Input: 112 kW
Width: 220MM
ISA is not an authorized distributor or affiliate for the Manufacturer of this product. The product will be materially different than one acquired through an authorized distributor. Therefore the warranty will be honored through ISA 3 Year Warranty! Warranty valid through Industrial Solutions Authority This product has upgraded power structure components to ensure the product can remain in service well past its 3 year warranty period."
