Quick Overview

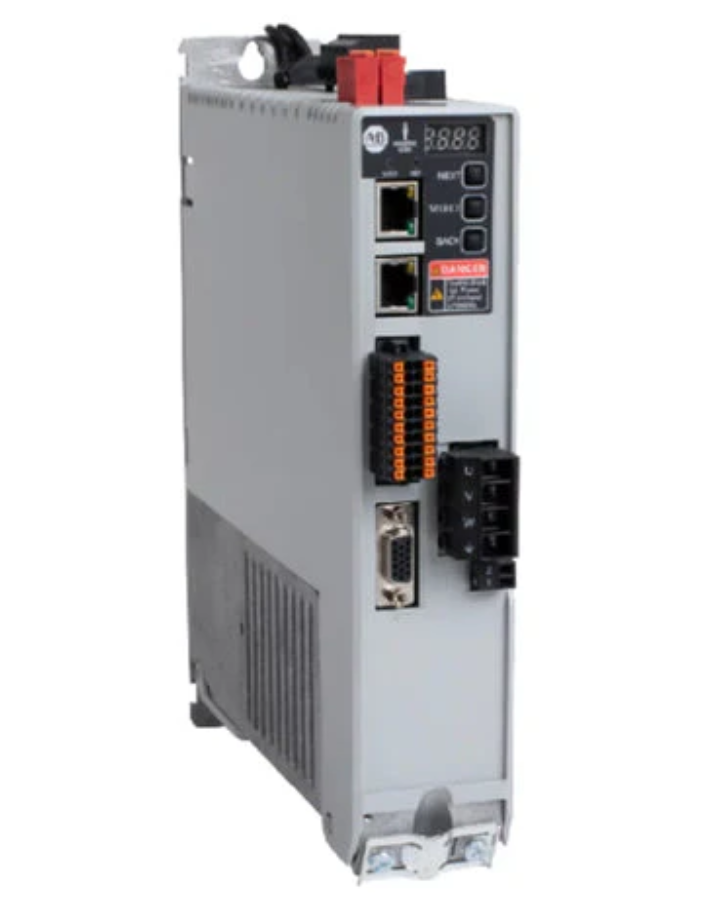

Kinetix 5300 Single Axis Ehternet/IP Servo Controller
Cat. No.: 2198-C4007-ERS
AC Input Voltage: 342....528V RMS, Three Phase (480V Nom)
AC Input Frequency: 47...63Hz
AC Input Current: 2.25 Amps
Peak Input AC Current: 6.29 Amps
Control Voltage: 24 Volts Nom
Continuous Output Current Amps: 2.9
Peak Output Current: 9.3 A
Continuous Output Power: 1.55 kW
Frame: 1
ISA is not an authorized distributor or affiliate for the Manufacturer of this product. The product will be materially different than one acquired through an authorized distributor. Therefore the warranty will be honored through ISA 3 Year Warranty! Warranty valid through Industrial Solutions Authority This product has upgraded power structure components to ensure the product can remain in service well past its 3 year warranty period."
Cat. No.: 2198-C4007-ERS
AC Input Voltage: 342....528V RMS, Three Phase (480V Nom)
AC Input Frequency: 47...63Hz
AC Input Current: 2.25 Amps
Peak Input AC Current: 6.29 Amps
Control Voltage: 24 Volts Nom
Continuous Output Current Amps: 2.9
Peak Output Current: 9.3 A
Continuous Output Power: 1.55 kW
Frame: 1
ISA is not an authorized distributor or affiliate for the Manufacturer of this product. The product will be materially different than one acquired through an authorized distributor. Therefore the warranty will be honored through ISA 3 Year Warranty! Warranty valid through Industrial Solutions Authority This product has upgraded power structure components to ensure the product can remain in service well past its 3 year warranty period."
- In Stock: 1
- Condition: New Other
- SKU: SD63891
Kinetix 5300 Single Axis Ehternet/IP Servo Controller
Cat. No.: 2198-C4007-ERS
AC Input Voltage: 342....528V RMS, Three Phase (480V Nom)
AC Input Frequency: 47...63Hz
AC Input Current: 2.25 Amps
Peak Input AC Current: 6.29 Amps
Control Voltage: 24 Volts Nom
Continuous Output Current Amps: 2.9
Peak Output Current: 9.3 A
Continuous Output Power: 1.55 kW
Frame: 1
ISA is not an authorized distributor or affiliate for the Manufacturer of this product. The product will be materially different than one acquired through an authorized distributor. Therefore the warranty will be honored through ISA 3 Year Warranty! Warranty valid through Industrial Solutions Authority This product has upgraded power structure components to ensure the product can remain in service well past its 3 year warranty period."
{##}
Cat. No.: 2198-C4007-ERS
AC Input Voltage: 342....528V RMS, Three Phase (480V Nom)
AC Input Frequency: 47...63Hz
AC Input Current: 2.25 Amps
Peak Input AC Current: 6.29 Amps
Control Voltage: 24 Volts Nom
Continuous Output Current Amps: 2.9
Peak Output Current: 9.3 A
Continuous Output Power: 1.55 kW
Frame: 1
ISA is not an authorized distributor or affiliate for the Manufacturer of this product. The product will be materially different than one acquired through an authorized distributor. Therefore the warranty will be honored through ISA 3 Year Warranty! Warranty valid through Industrial Solutions Authority This product has upgraded power structure components to ensure the product can remain in service well past its 3 year warranty period."
